Model: LDH-900AC
Introduction: This Multifunction Bag Packing And Boxing Line is suitable for heavy bag packing and boxing, apply for PE material film, beautiful sealing and high accurate weihing, Save labor cost and improve efficiency.
E-mail: [email protected]
Tel/Whtasapp: +86 17388602385
Application:
It is suitable for box and bag packing of various hardware, fasteners and auto parts. Share a set of loading and weighing system, saving cost and space.
Our packing machine widely use in:
-Fastener(washer, screw, nut, washer, nail, small hardwares, etc.)
- Furniture spare parts
- Plastic pipe fittings (pipe, joint etc.)
- Auto Parts
- Machinery and appliance spare parts
- Clothes parts (button,slider etc.)
- Toy industry
- And other solid material counting/ weighing and packing.
It can pack the same items or mixed items in the packs by quantity.
Samples:
Features:

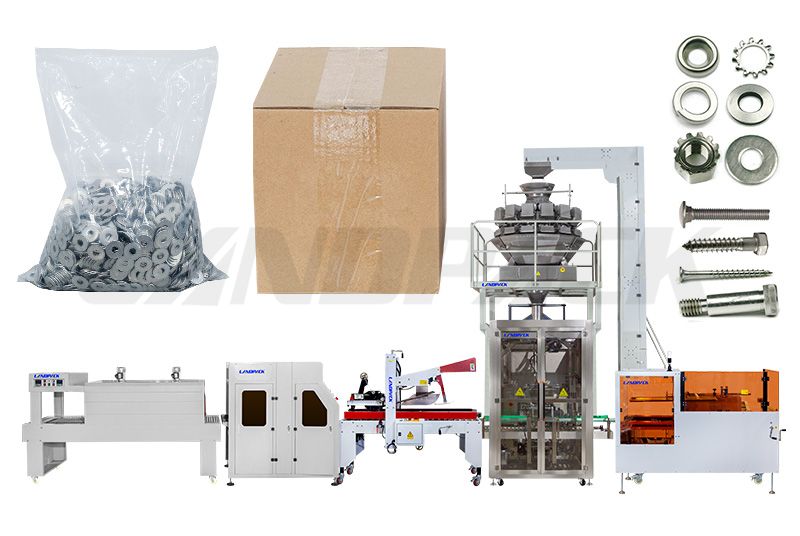

1. Automatic metal washer bag packing and boxing packing machine line
2. Heavy bag packing and boxing
3. Save labor cost and improve efficiency
4. Suitable for PE material film, beautiful sealing and high accurate weihing
Parameters:
Main Machine Specification | ||||
Model | LD-420 | LD-520 | LD-720 | LD-900 |
Film width | Max.420mm | Max.520mm | Max.720mm | Max.900mm |
Bag length | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
Bag width | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
Film roll diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
Packaging rate | 5-60 bag/min | 5-60 bag/min | 5-55 bag/min | 5-20 bag/min |
Range of measurement | 150-1500ml | 2000ml | 4000ml | 1-25L |
Film thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V 50/60Hz 2kw | 220V 50/60Hz 3kw | 220V 50/60Hz 3kw | 220V 50/60Hz 4.5kw |
Machine size(LxWxH) | 1217x1015x1343mm | 1488x1080x1490mm | 1780x1350x2050mm | 2305x1685x2725mm |
Machine quality | About 650kg | About 680kg | About 750kg | About 950kg |
Video:
