High accuracy counting packaging machine for screw/ nail/ nut

Model: LD-LS-6

Introduction: The machine uses microcomputer control. It widely used in Screw, bolt, washer, blocks, nut, electrical appliances, lighting, metal decorative products and other kinds of regular shape fastener products mixed packaging.

E-mail: [email protected]

Tel/Whtasapp: +86 17388602385

Application Samples Features Parameters Video Inquiry

Application:

Introduction: The machine uses microcomputer control. It widely used in Screw, bolt, washer, blocks, nut, electrical appliances, lighting, metal decorative products and other kinds of regular shape fastener products mixed packaging.

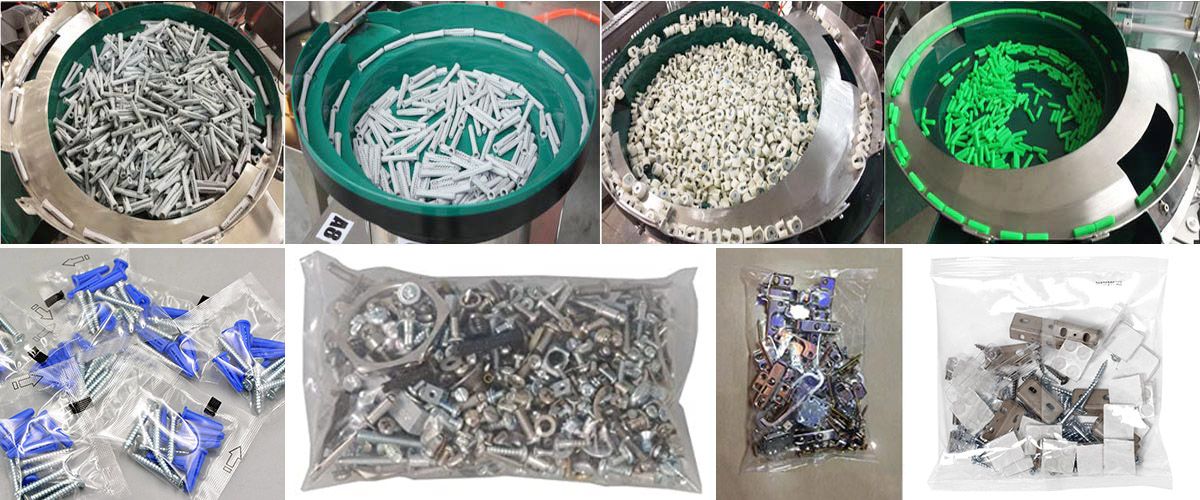

Samples:


Features:

1. Adopting spacking counting and fiber optics re-inspection or completed fiber optics counting, suitable to mixing packaging for1~40 varieties of items.

2. Machine owns many patent technology, such as technology of fiber optics counting, weight checker.

3. Solid sealing, smooth and elegant bag shape; high efficiency and durability, can be equipped with exhaust device, printer,labeling machine, transfer conveyor and weight checker.

4. Automatic ordering, counting, packing and printing etc. Easily adjust the quantity of screws in the bag, set the quantity of bags what you need, when meet, the machine will be stop automatically.

Single-plate measurement of a single screw, if you need to pack a variety of specifications at the same time the need for multiple vibration disk supporting the use of.

Parameters:

ModelLD-LS5LD-LS6LD-LS7LD-LS8
Speed10-30bag/min
Counting Range1-10000pcs
Pouch size60 Main body L:40-160 W20-110mm  388 Main body L:40-200 W30-50mm  420 main body L:50-300mm W: 80-200mm
Film Width60 Main body 220mm   388 Main body 320mm  420 Main body 420mm
Sealing typeBack sealing/Three sides sealing
Power4000W4500W5000W5500W
Voltage220V,380V/50Hz/60Hz
Weight500kg600kg350kg400kg
Packing materialOPP/PE/PET
Air Consumption0.4m³/min 0.6MPa

Video:
