Foshan Land Packaging Machinery Co., Ltd.
Home / Products / Plastic/ Rubber Parts Packing Machine

Automatic Plastic Part And Hardware Fittings Counting Packing Machine

Model: LDH-S520-8

Application: plastic components: caps, clips, small toys, connectors, fasteners; hardware fittings: screws, nuts, bolts, washers, rivets, etc.


Application Samples Features Parameters Video Inquiry

Application:

Application:  Counting and packing for plastic components: caps, clips, small toys, connectors, fasteners; hardware fittings: screws, nuts, bolts, washers, rivets, etc.

Suitable for hardware, automotive, toys, and small accessory industries.

Samples:

Automatic Plastic Part And Hardware Fittings Counting Packing Machine

Features:

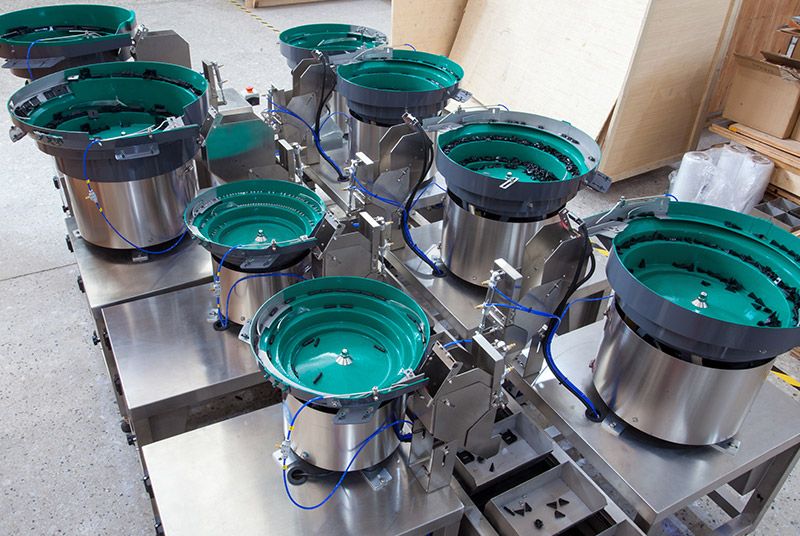

Equipped with 8 independent vibratory counting bowls for accurate and stable counting;

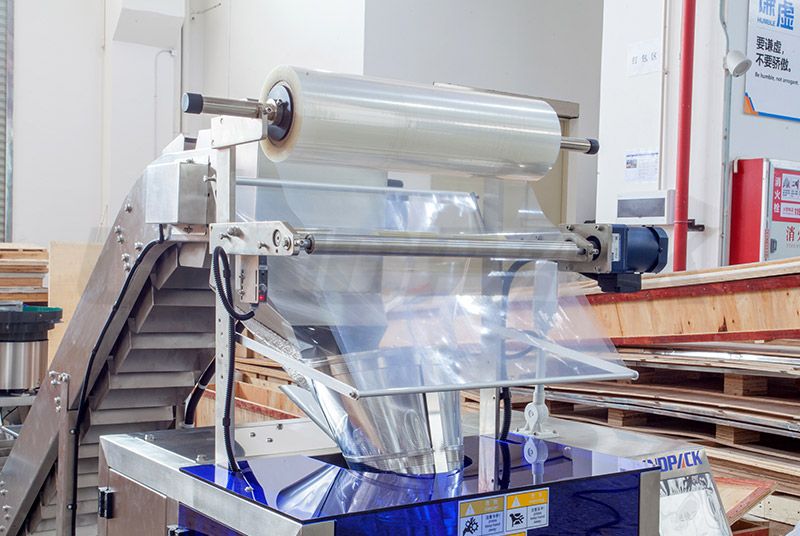

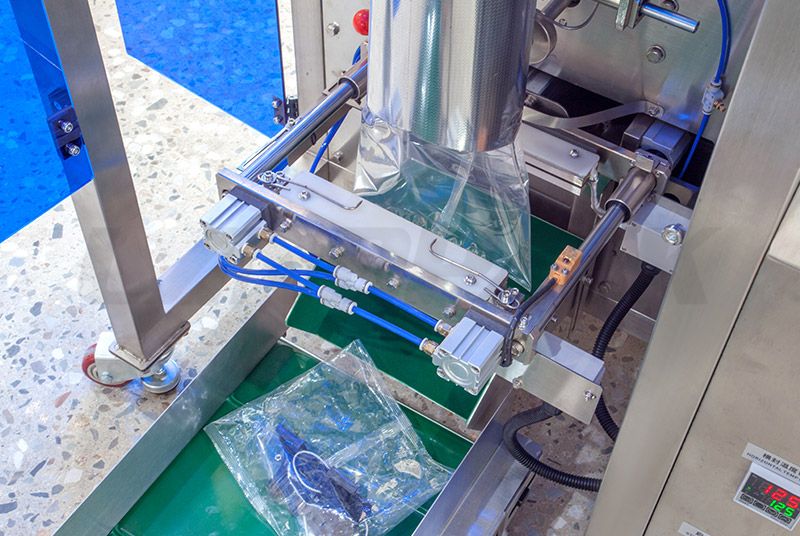

Integrated vertical form-fill-seal packaging system;

High-speed automatic counting and bagging operation;

PLC control with touchscreen HMI for easy operation;

Adjustable counting quantity and bag size;

Stable performance with low error rate;

Reduces labor cost and improves production efficiency;

Suitable for various plastic parts and hardware fittings;

Parameters:

ModelLD-420LD-520LD-720LD-900LD-1050LD-1200
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mm150-Max.720mmMax.900mmMax.900mmMax.1200mm
Measurement Range150-1500ml5-2000ml4000ml1-25L1-25L1.5L-45L

Video:
